Overview

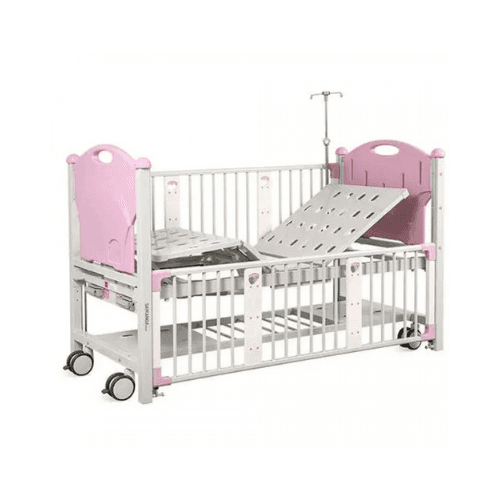

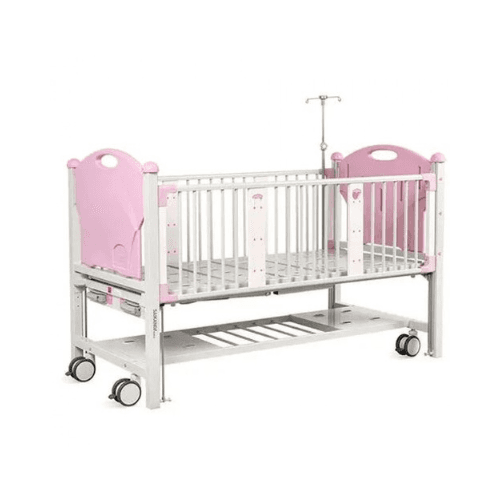

Pediatric 2-Function Manual Bed with Mattress, model CX2x, designed for pediatric care in hospitals or at home. Built on a Baosteel frame with molded ABS head and foot ends featuring child-friendly graphics. Supplied with a segmented medical mattress and full-length protective side rails.
Functions
- Manual adjustment of backrest and knee rest via two cranks.
- Backrest range: 0–75° (±10°).
- Knee rest range: 0–35° (±10°).
Safety and mobility
- Full-length side rails integrated with the head and foot ends; move up and down with three height levels, gas-spring assisted, auto-locking.
- Powder-coated vertical bars; 6 cm spacing.
- 5-inch rubber castors with brakes; 4 pcs.
Access and storage
- Stainless steel IV pole, 1 pc; pole load capacity 15 kg.
- Four IV pole sockets.
- Accessory holder and shoe holder.
- Two drainage hooks.
Dimensions
- External: 1800 × 900 × 1260 mm (L × W × H).
- Bed height: 650 mm.
- Mattress platform: 1760 × 800 mm.
- Approximate bed size: 195 × 90 cm.
Construction
- Perforated platform with smooth, weld-scar–free surface.
- Optional ABS platform and X-ray translucent resin platform.
- New ABS material for head/foot ends; colored; decorated with cartoon bears.
- Frame material: Baosteel.
Performance and capacity
- Bed load capacity: up to 200 kg.
- Platform load capacity: 250 kg.
- Endurance test: carried 120 kg, traveled 30 km and crossed obstacles 500 times.
Scope of use
- For hospitals or home use.
- Suitable for all pediatric age groups.
Supplied accessories
- Manual cranks: 2 pcs.
- 5-inch rubber castors: 4 pcs.
- Full-length side rail set: 1 set.
- Plastic head/foot end decorated with cartoon bears: 1 pc.
- IV pole: 1 pc.
- IV pole sockets: 4 pcs.
- Drainage hooks: 2 pcs.
- Segmented medical mattress: included.
Standards
- CE, FDA and ISO certified.
